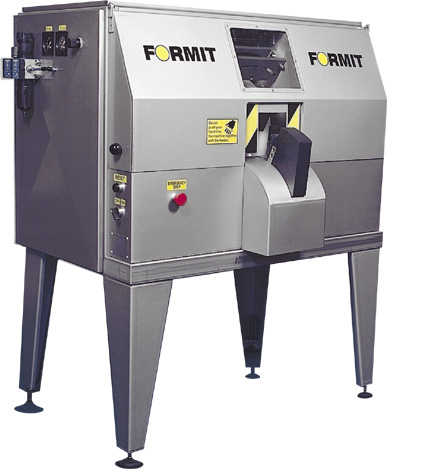

The automatic FORMIT CUT chateau barrel cutter can produce a perfect chateau barrel with a certain curve and with an adjustable diameter. The raw material has to be manually placed into the cutter feeding system. Each feeding movement produces a perfect chateau barrel. The cutter operates using compressed air and can produce up to 1200 pcs of perfect chateau barrels per hour. The finished product is separated from the waste product and there is no water used in the forming process. The FORMIT CUT 200 available in one standard versions and cuts a chateau barrel with seven equal sides, with the max and min measurements as shown below.
|
TECHNICAL DATA
Size with standard frame
|
| Overall length |
1100 mm |
(-") |
| Overall width |
820 mm |
(-") |
| Overall height |
1400 mm |
(-") |
| Frame length |
- mm |
(-") |
| Overall weight |
250 kg |
(- lbs) |
| Compressed air (per m) |
300 L |
(6 bar) |
|
Capacity
|
| 1200 pcs/h depending on raw material type and quality. |
|
Transportation
|
| Transportationbox: 250 x 1050 x 1000 mmm |
| Transportation weight: 320 kg |
NOTE: Due to continual improvements, the accuracy of the description and illustration cannot be completely guaranteed.
- Further info on the production of the potato chateau barrel >>
-Further info on the production of the carrot chateau barrel >>
|
Chateu barrel measurements:
| |
|
A |
B |
C |
| min.adj. |
|
|
|
|
| CUT-200 |
55 mm |
32 mm |
16 mm |
| max.adj |
55 mm |
45 mm |
30 mm |

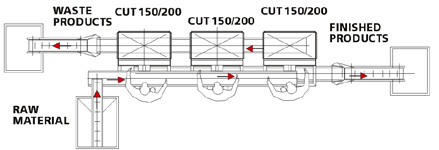

Production lines (click picture for larger image):
The FORMIT CUT 200 can be arranged in small production lines for a higher capacity. As additional equipment, we have transport belts for moving the raw material, finished and waste products. |
